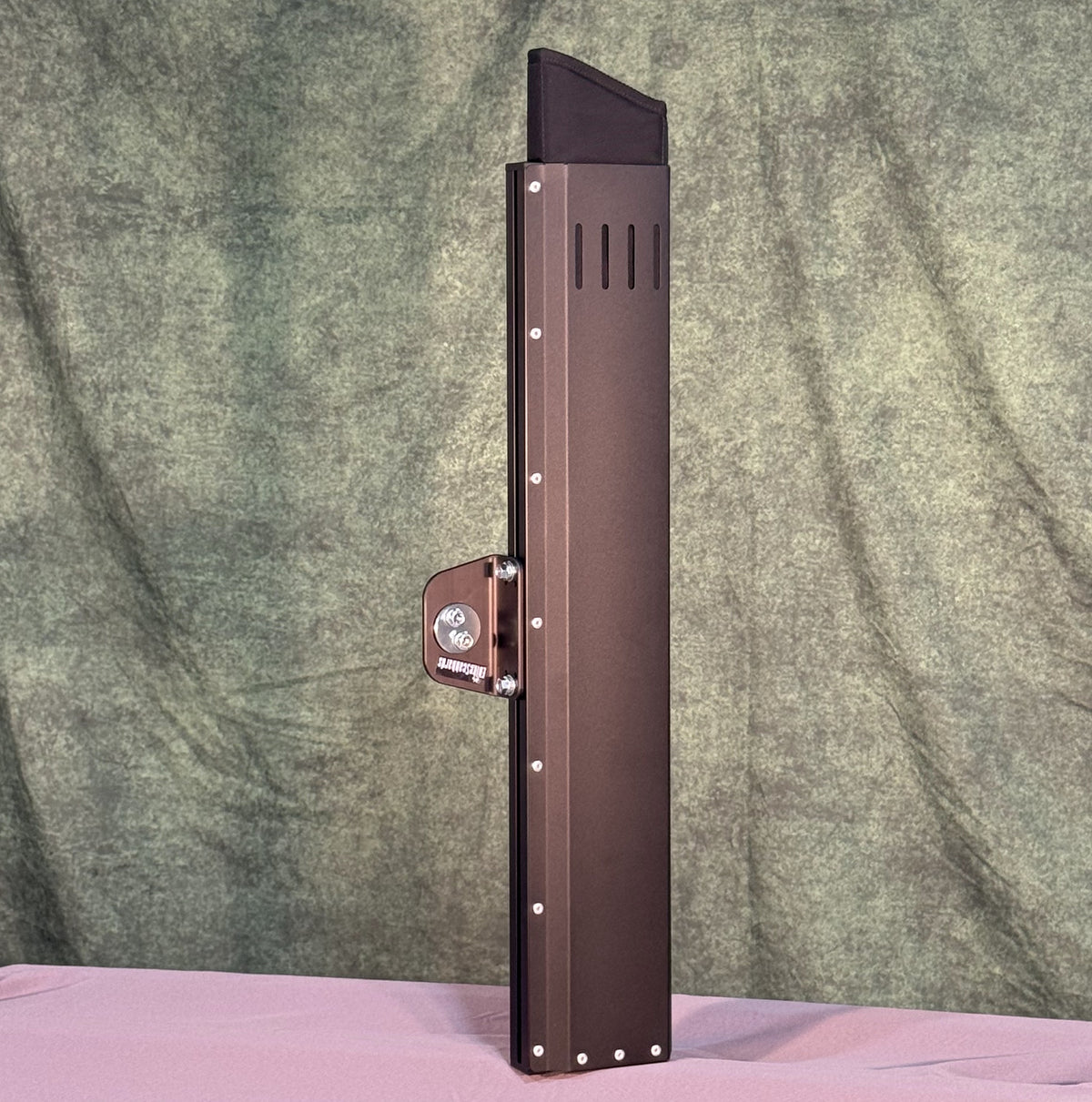

MOLLE-mount Shotgun Scabbard

Intallation

• Mounts to any MOLLE panel that is at least .06" thick with 1.0"x1.25" cut outs.
  • Any angle
  • Left or right hand

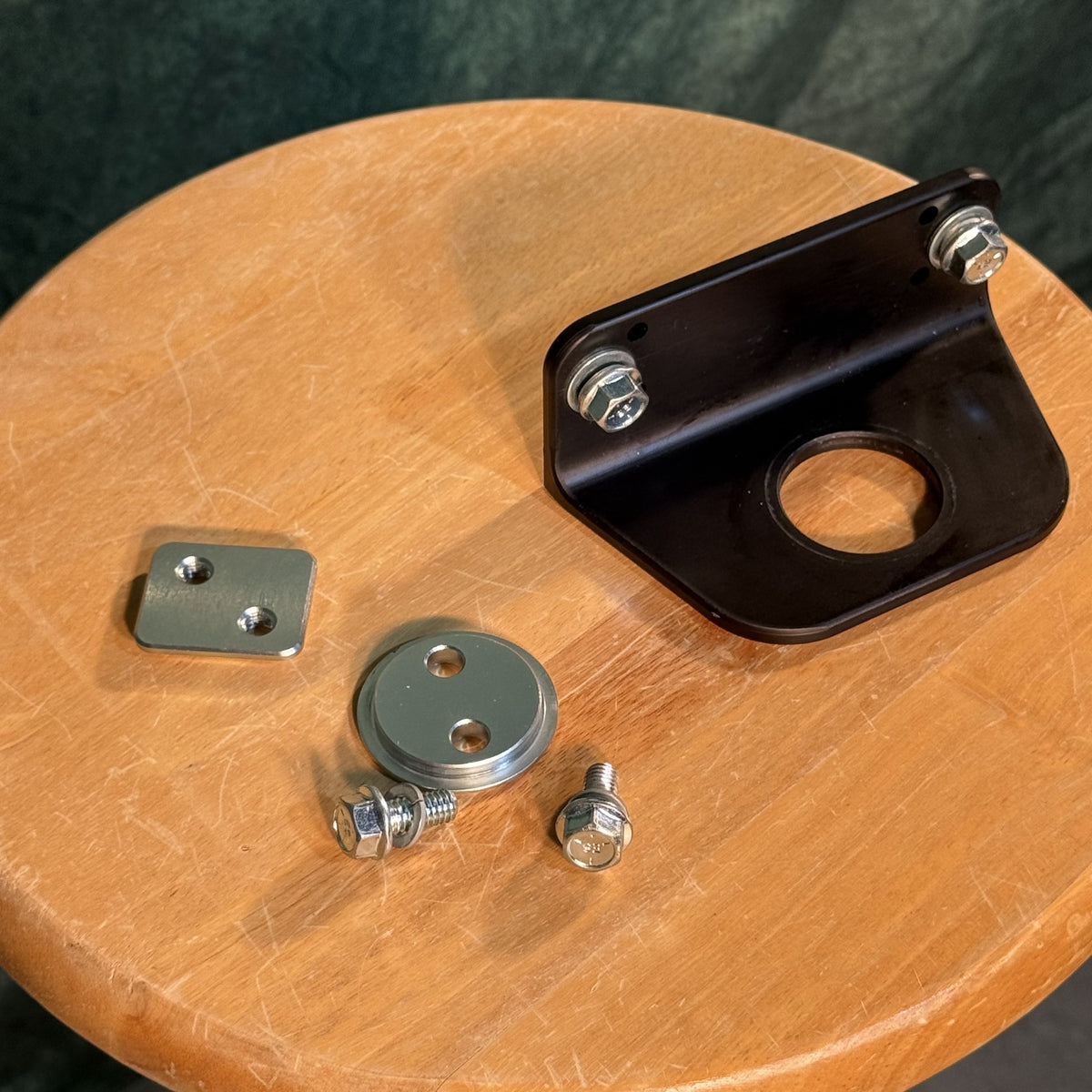

  • All mounting hardware included.  You supply just the MOLLE panel and imagination.

• See installation section of this site (Link).  And see install video (Link).  This video shows installation to our Polaris Ranger Lock and Ride rail though will show everything needed to mount to any MOLLE panel.

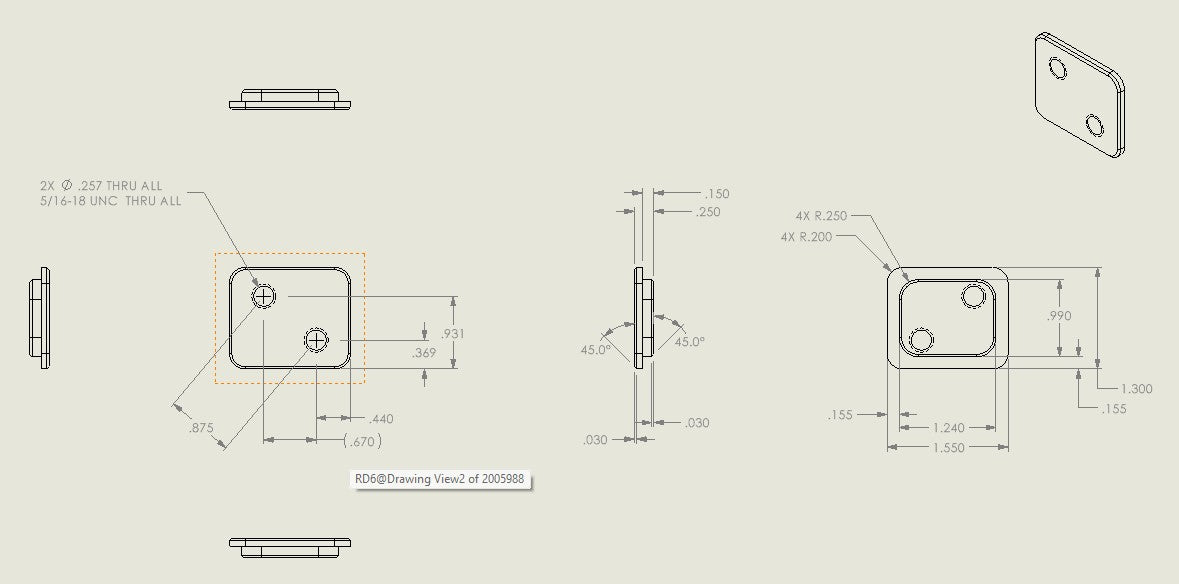

• See dimensional drawing of MOLLE nut to ensure fitment with your MOLLE panel.

Benefits

• Solves all the problems associated with standard SxS/UTV shotgun rack or scabbard systems.
  • Optimized balance of protection and ease of access.
  • Positions the gun lower where it is easy to reach for shorter (or taller) shooters and hunters.  Does not require reaching up and over the rail to place the gun in the rack.
  • Easy in and out with the gun.
  • Fully adjustable for any angle and mounting on either side of the bed.  Use your imagination for mounting configurations other than what is shown in pictures.
  • Takes up minimal bed space and maintains full access to the bed.
  • Does not depend on Velcro®.
  • Lightweight and easy to handle. Lifts off in seconds for storage.
  • Fully surrounds the gun with 1/4" high density closed cell polyurethane foam inside of nylon plus an extra 1" of foam at the bottom.
  • Liners can be removed in just a second with no tools for storage, cleaning, transport, etc...


Features

• Scabbard: The same tried and true scabbard developed for demanding use on e-bikes.

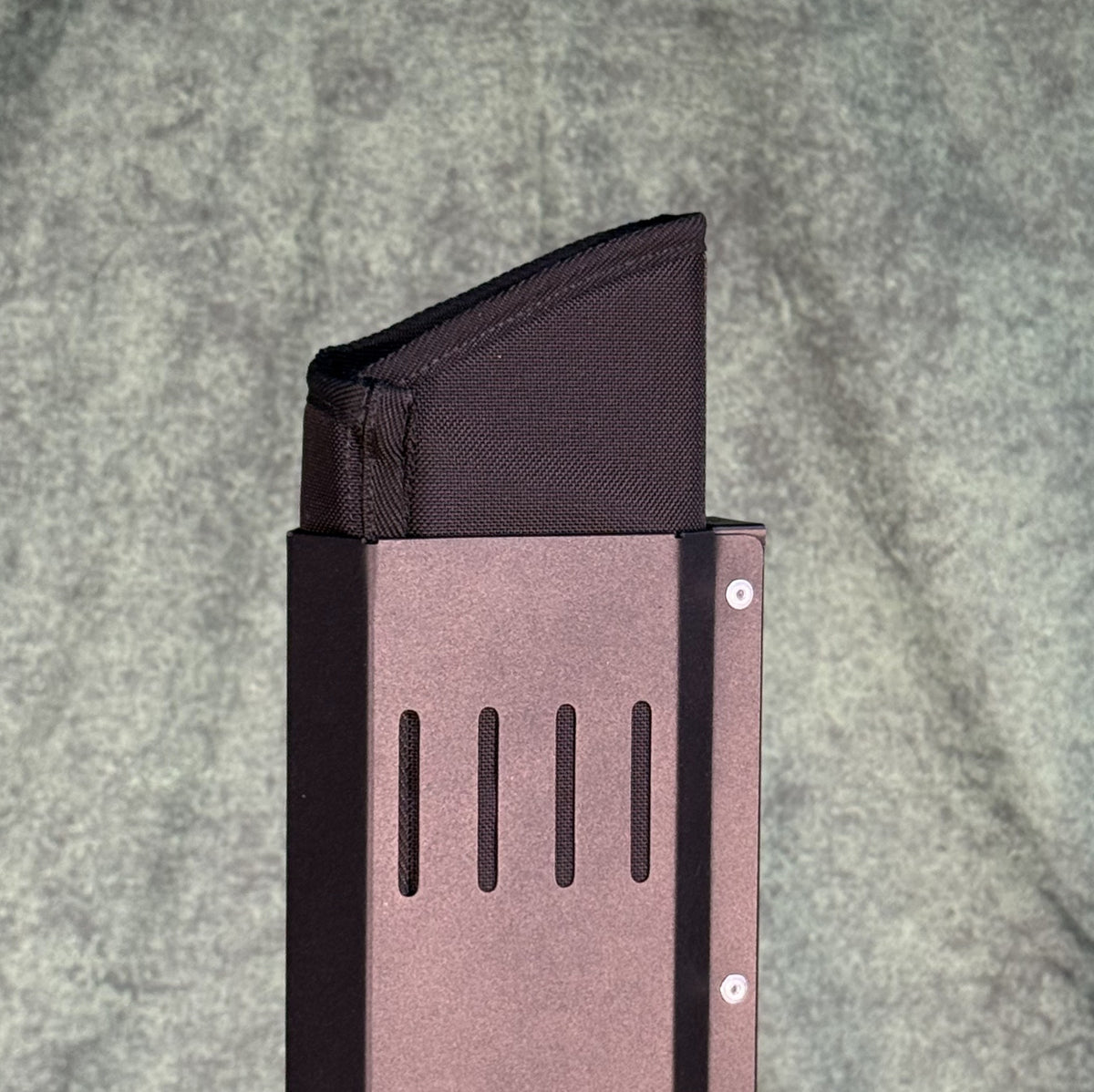

  • Easily removeable liners made from high quality nylon and closed cell foam which will not absorb water.
  • Compact yet durable aluminum shell.

  • Powder coated shell with anodized extrusions.
  • No protruding fasteners that could damage gun.

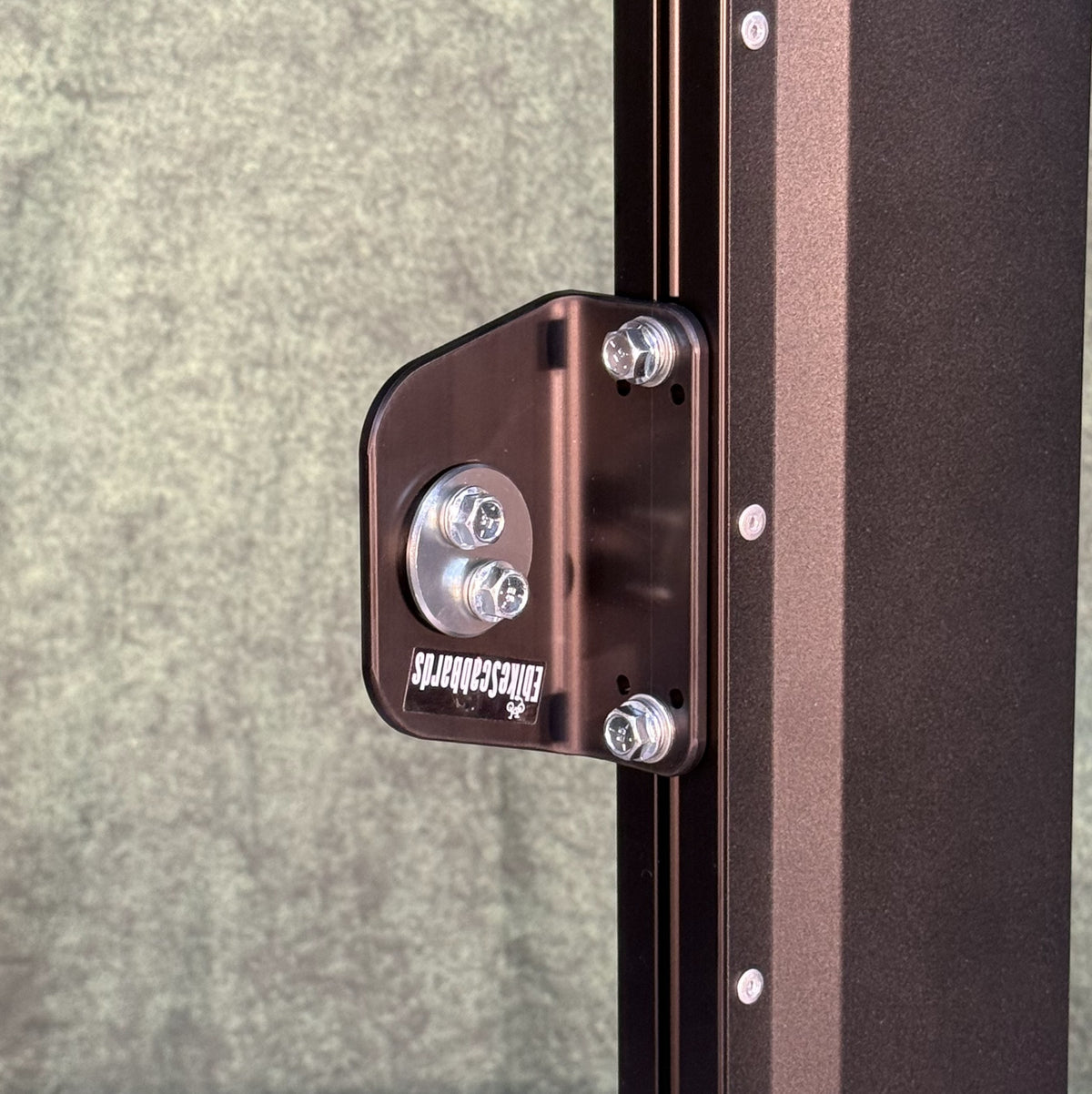

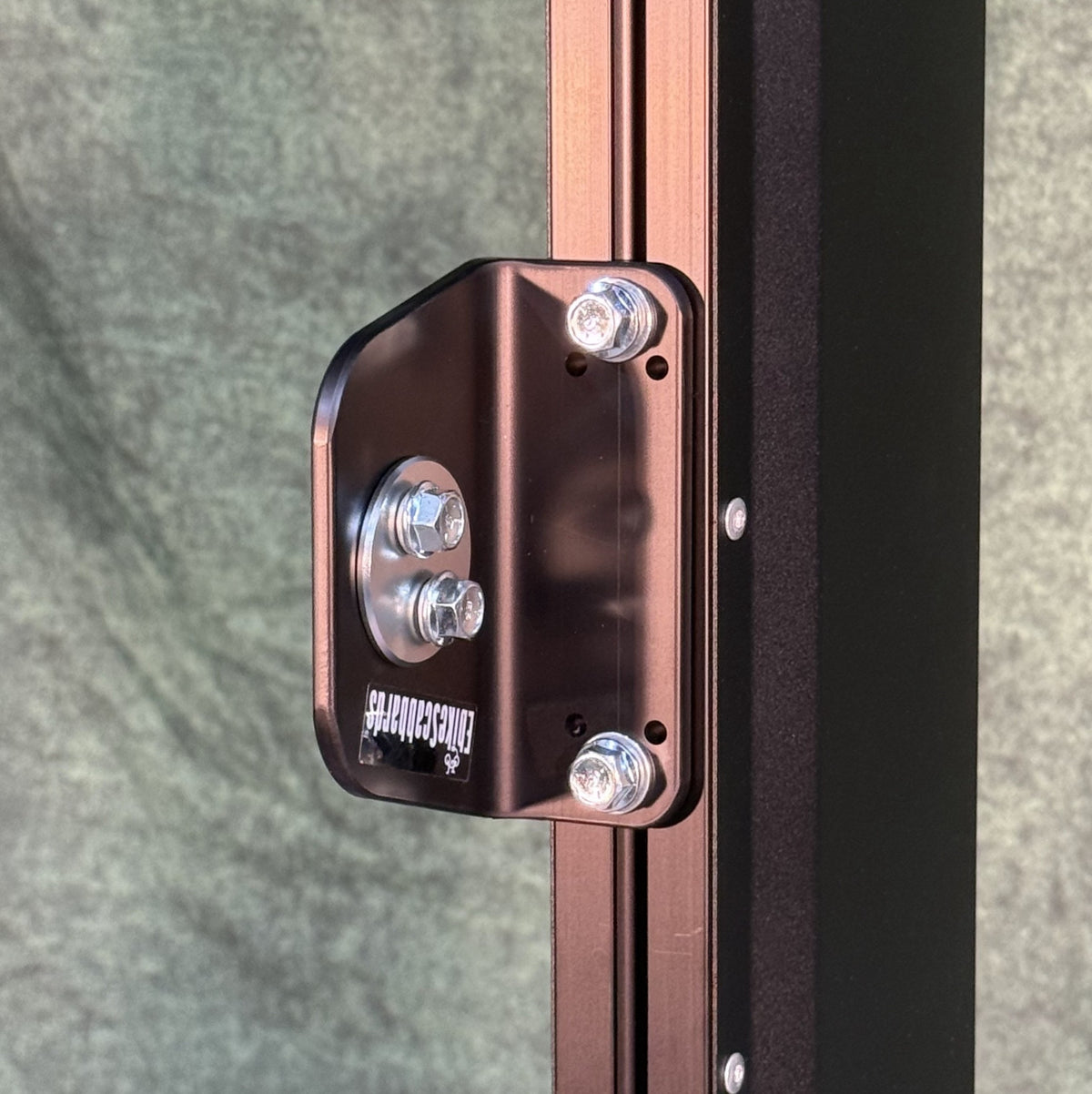

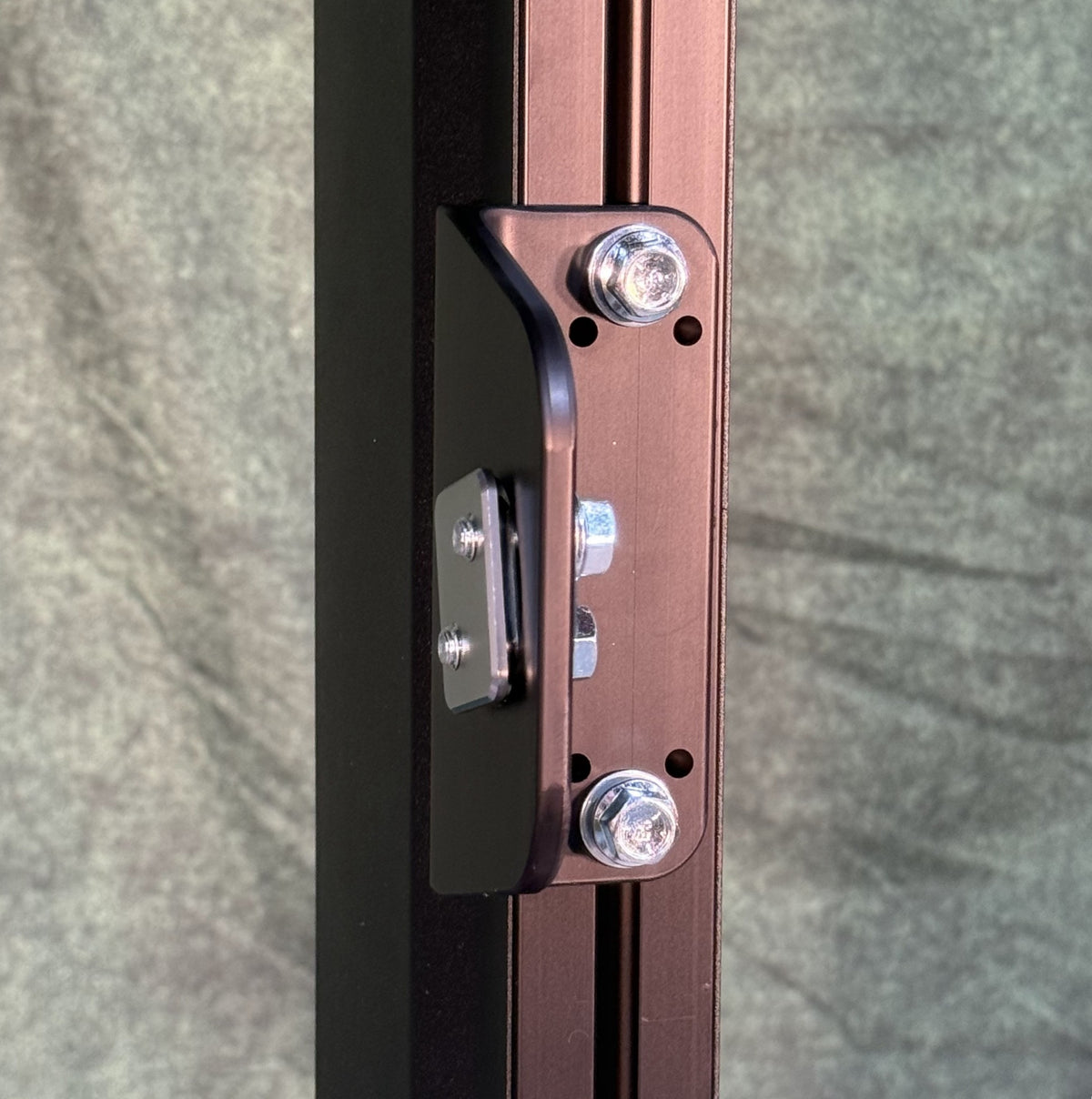

• MOLLE pivot mount:  Scabbard can mount at any angle or any position along MOLLE rails.  All parts are symmetric for left or right hand mounting giving infinite mounting flexibility.
• MOLLE rail:  1/4" thick aluminum MOLLE rail with drop in stakes for Polaris Lock and Ride beds.  Easily drop in or lift out with scabbard attached.

Dimensions

• Nominal inside dimension of padded liner:  31.7" x 4.4" x 1.8". (see picture)
• Padding is 1/4" thick all around and includes separate 1" thick pad at bottom to protect barrel end.


Gun fits

• Over/Under shotguns:  Fits any  with 24"-34" barrel length. Will fit with ShotKam attached, but not ShotTracker.
• Semi-auto shotguns:  Fits any with barrel length 26" or greater.  With or without extended bolt handle as it will be above the liner.
• Pump shotguns:  Fits anything except short barrel models with pistol grips.
• Rifles: No scoped rifles.  Open sight models likely okay but need to look on case by case basis.
• SxS shotguns:  Check your measurements.  May fit if small gauge.

In the box

• Includes everything shown in pictures.
• MOLLE-mount scabbard

• Arrives enclosed in a heavy wall cardboard box, and padded with bubble wrap.  The only assembly required is attaching the scabbard to the MOLLE rail during setup and takes just one or two minutes.

Shipping

• Calculated at checkout.  Usually around $25 for one scabbard.
• FREE shipping with orders of two or more.

Feel free to contact us with any questions and I will do my best to answer right away.
