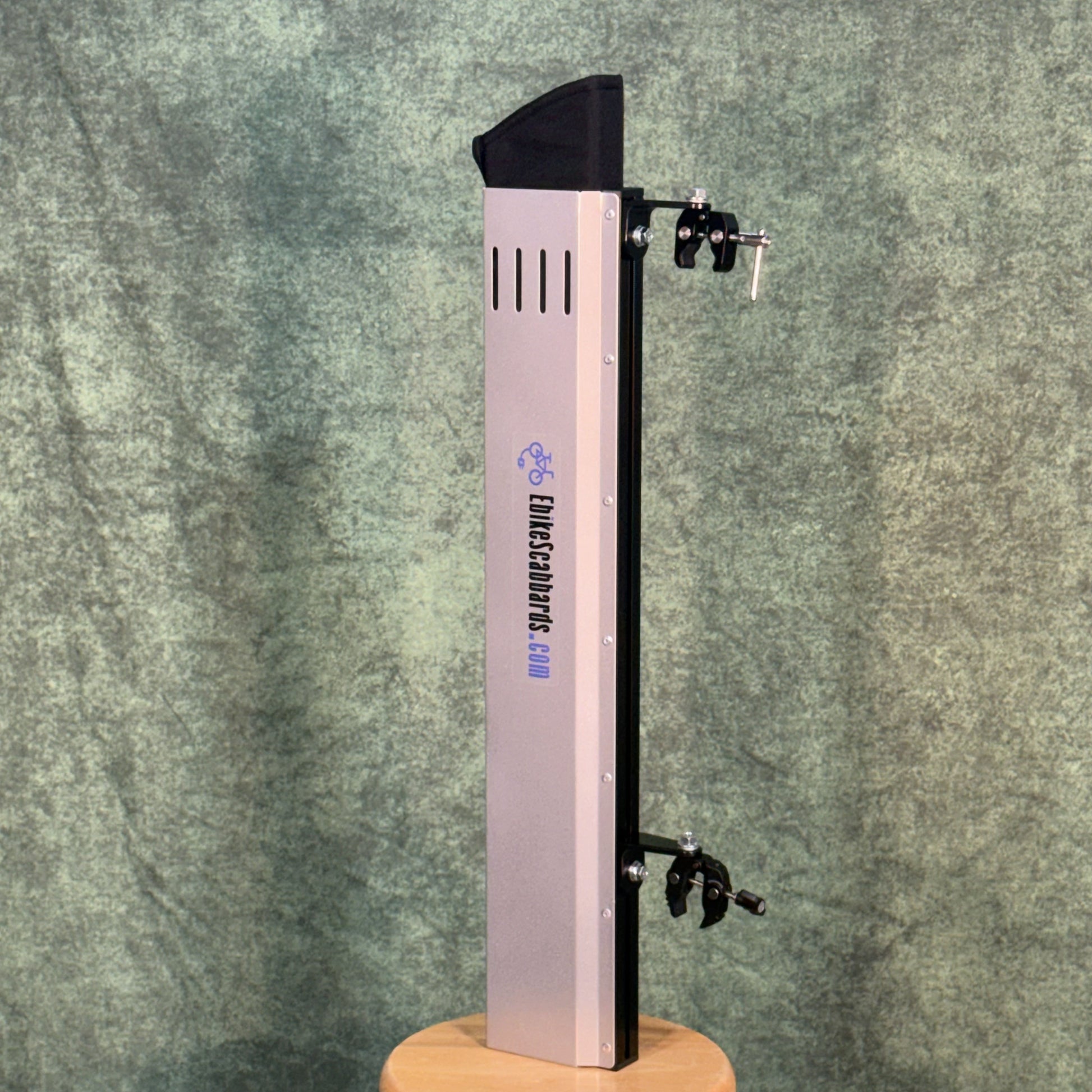

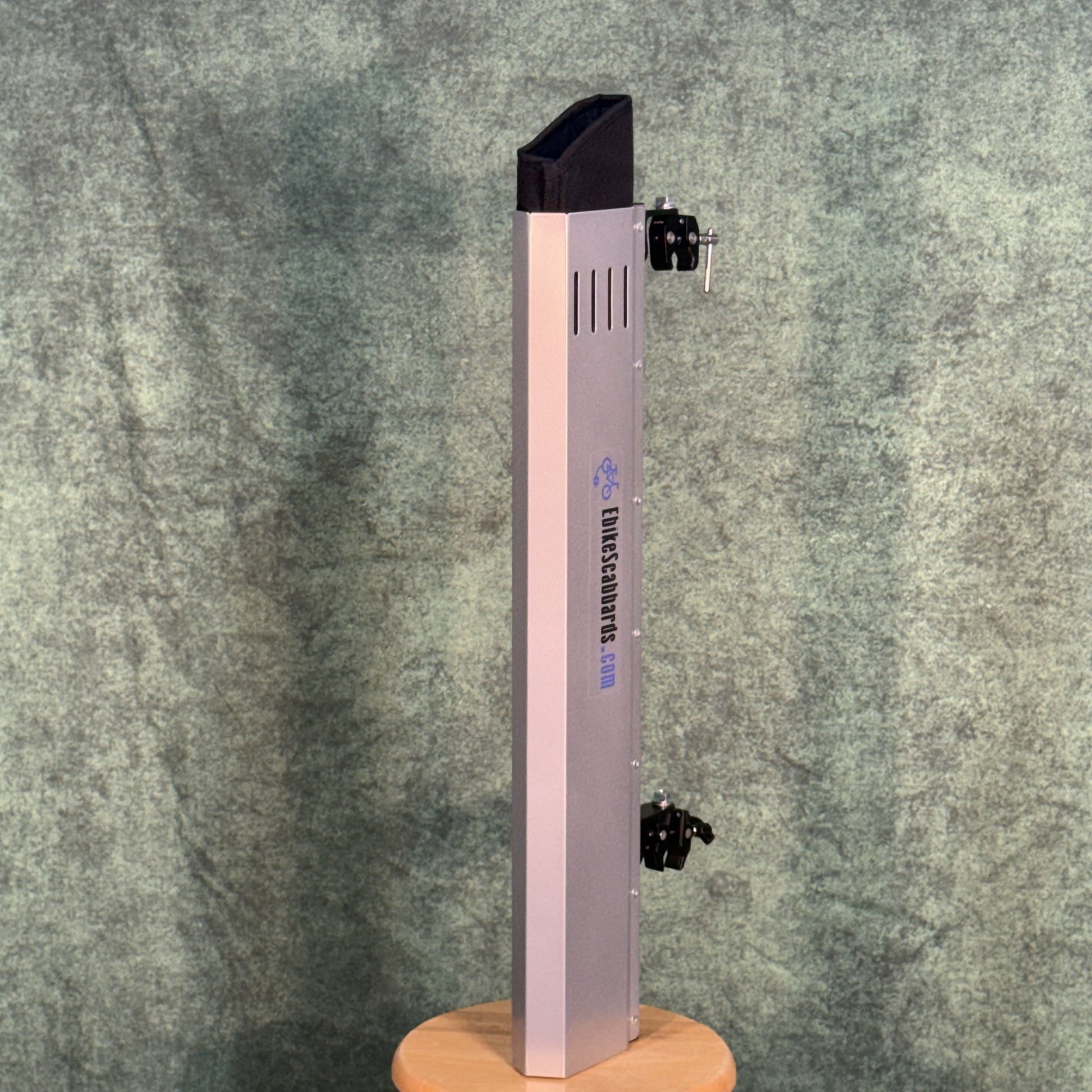

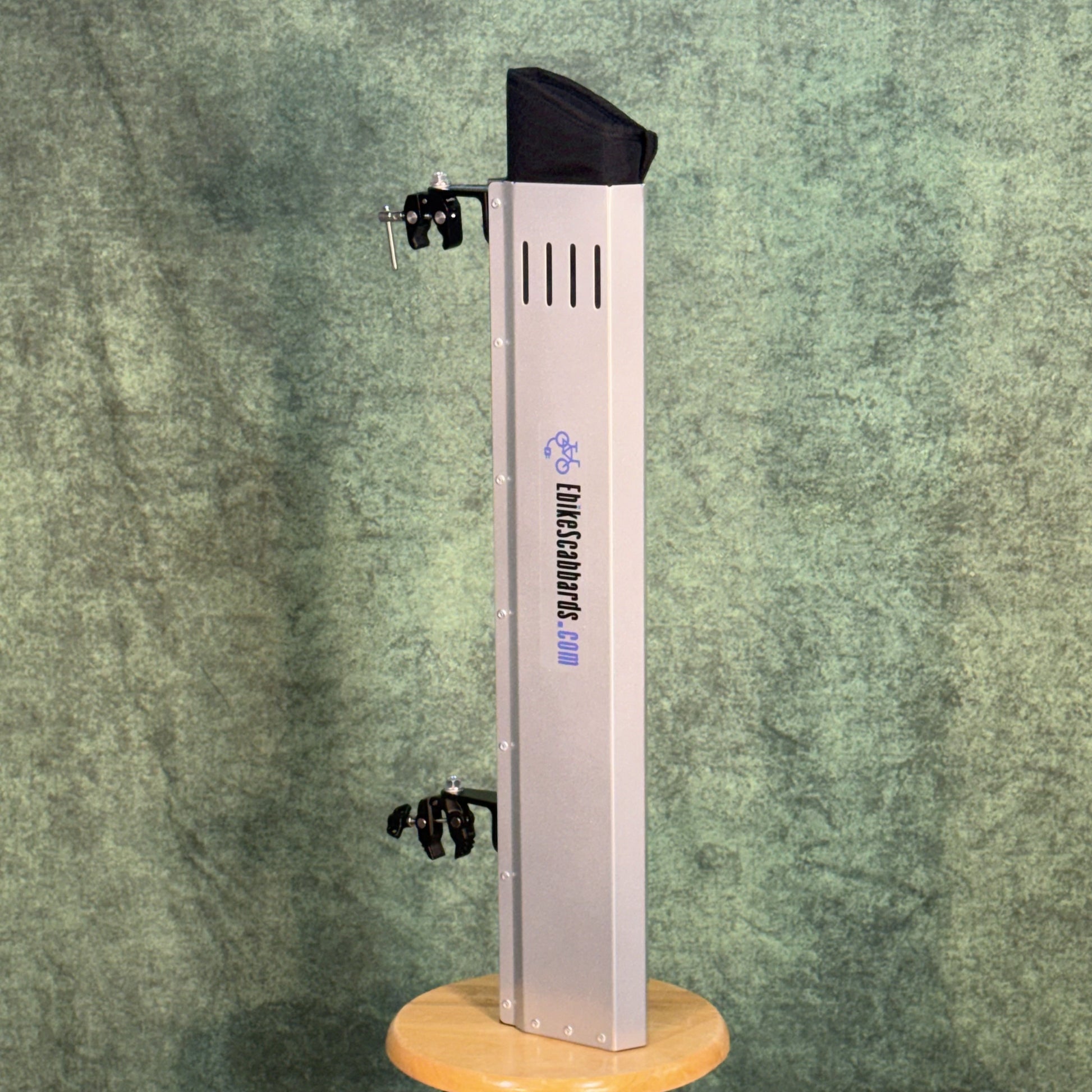

Gen_2 Shotgun Scabbard - SILVER EDITION

Features

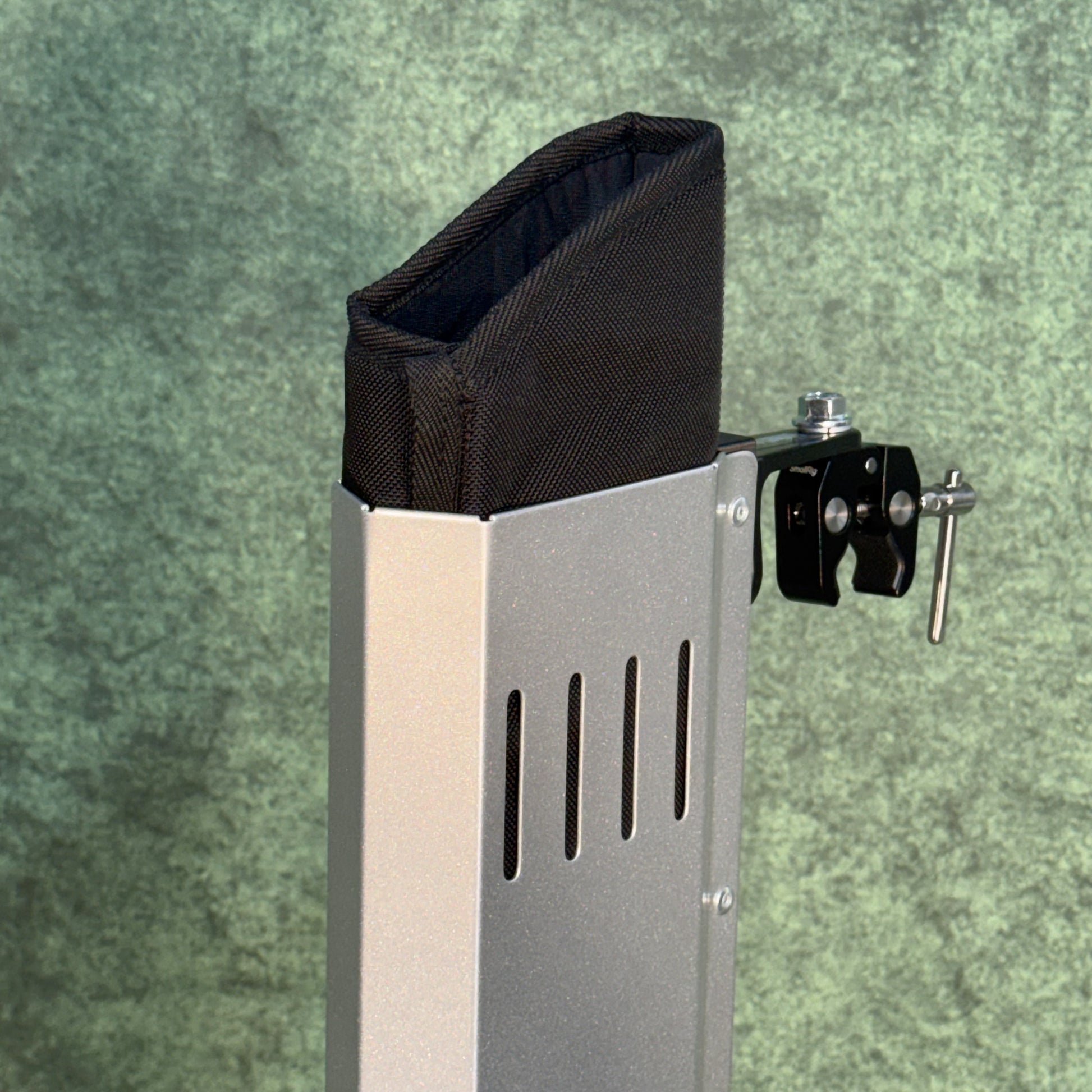

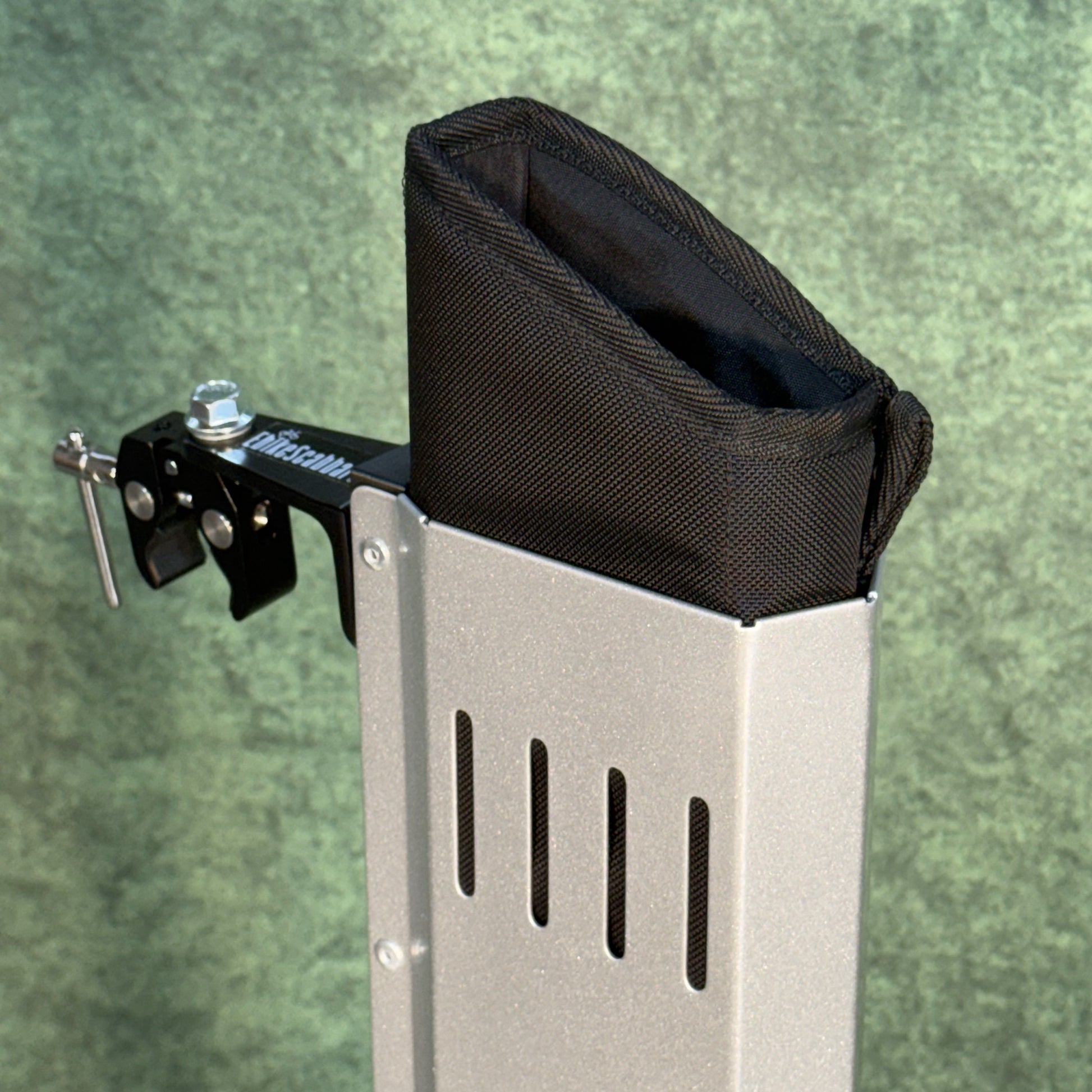

• Premium Liners: Carefully hand crafted using top-tier nylon, high density closed cell foam that will not absorb water, and heavy-duty stitching.
• Custom Aluminum Extrusion: Key to the proprietary mounting system, allows fully flexible mounting to any two tubular points.

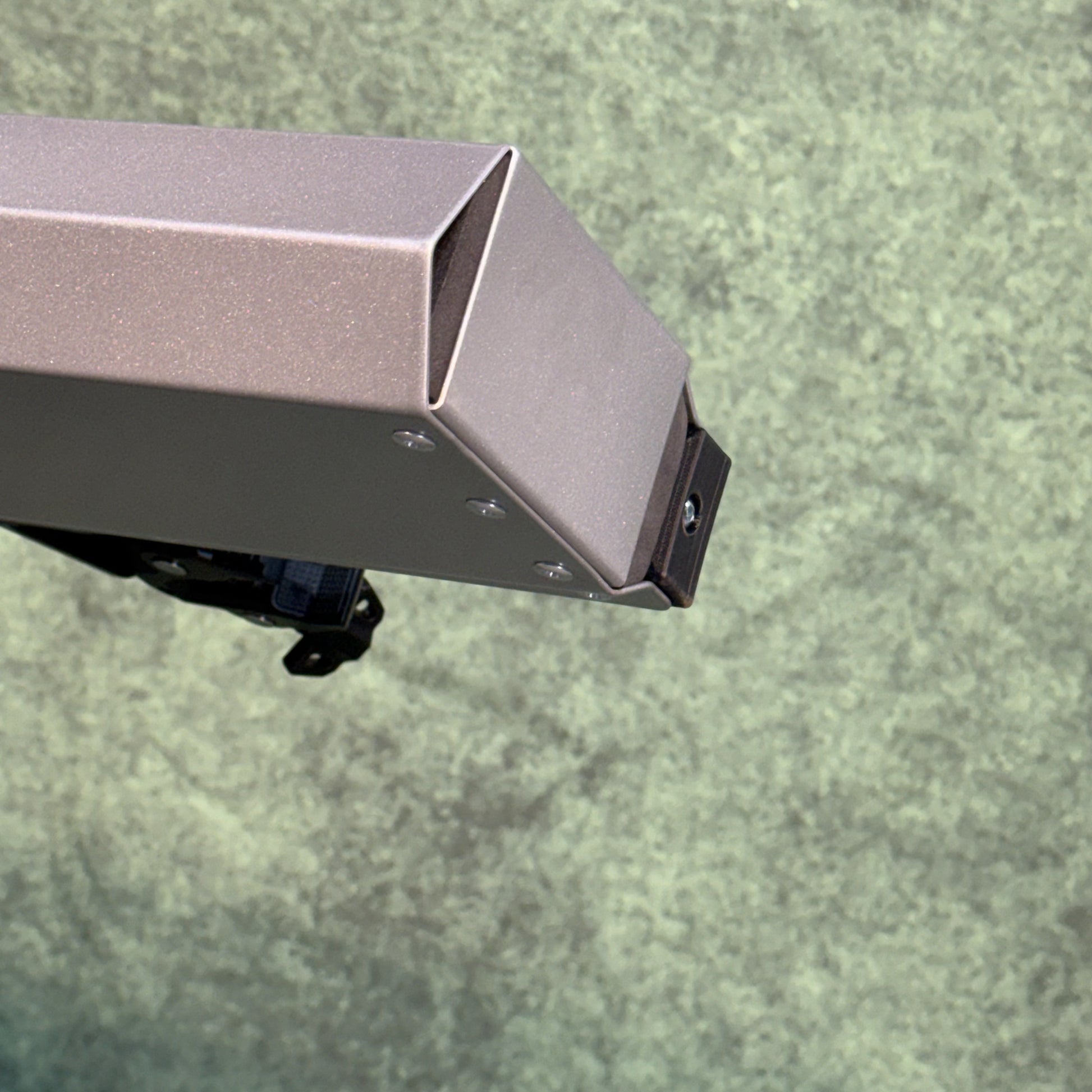

• Aluminum Shell: Finished with premium powder coating by SKYCOAT Industrial Armor.

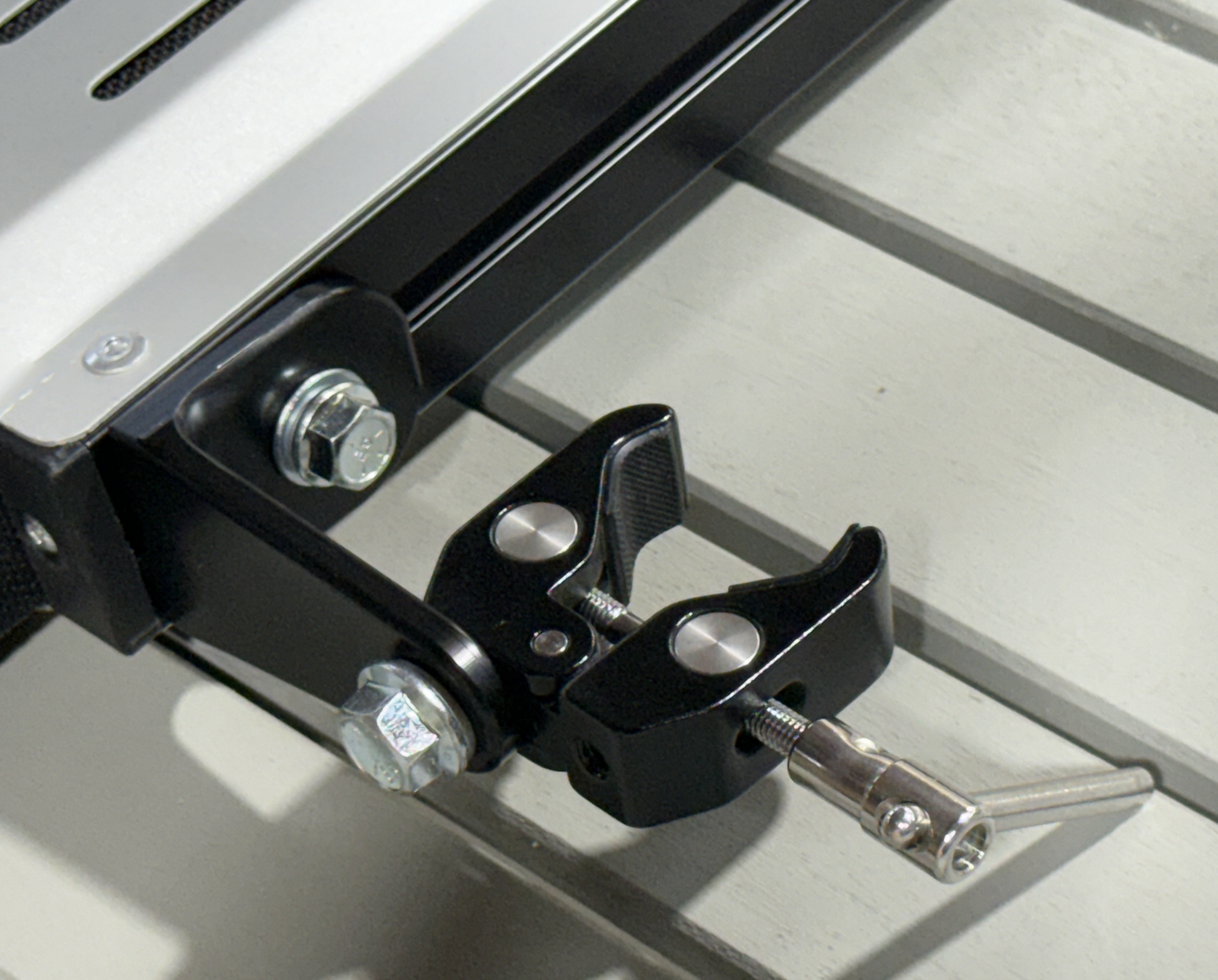

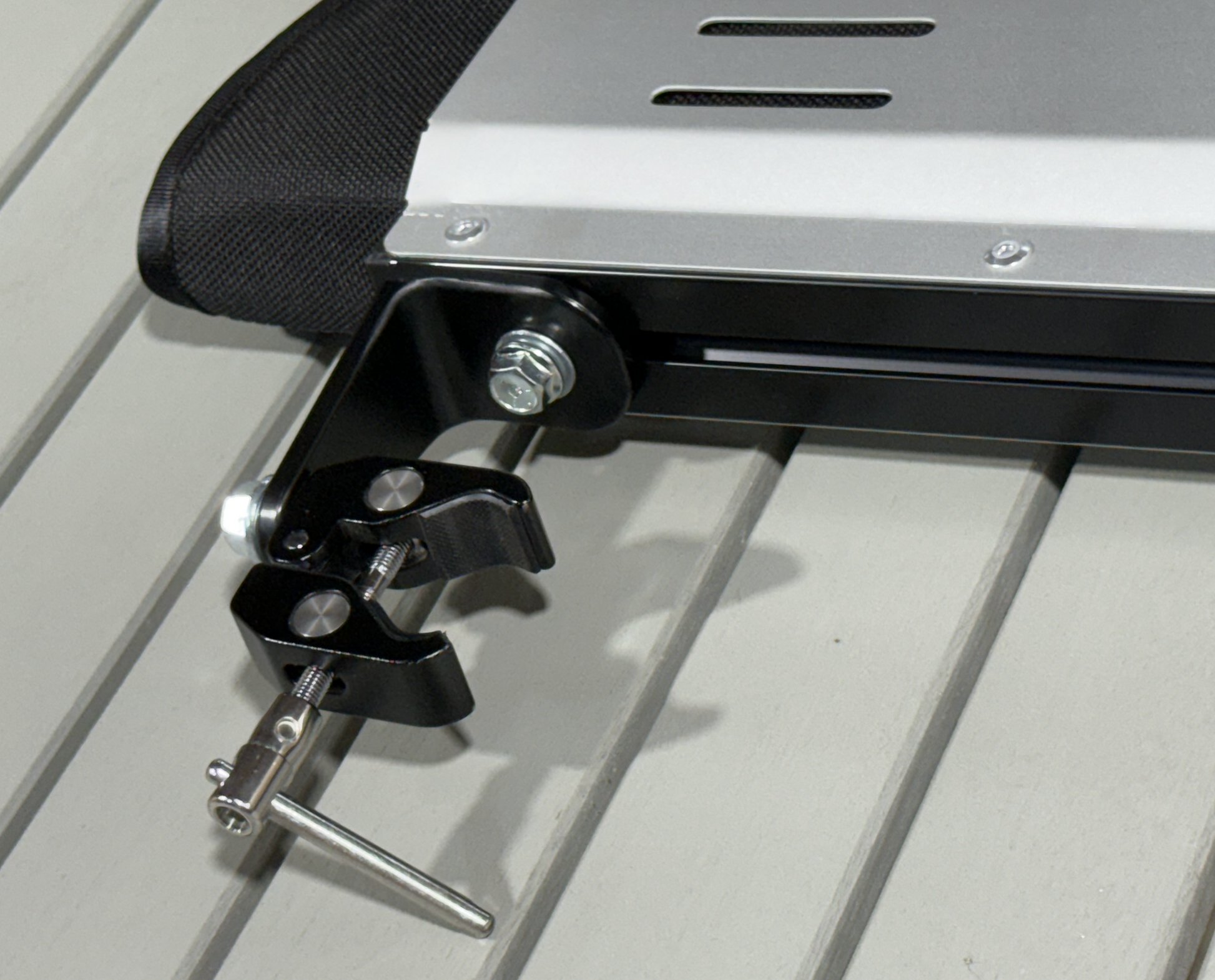

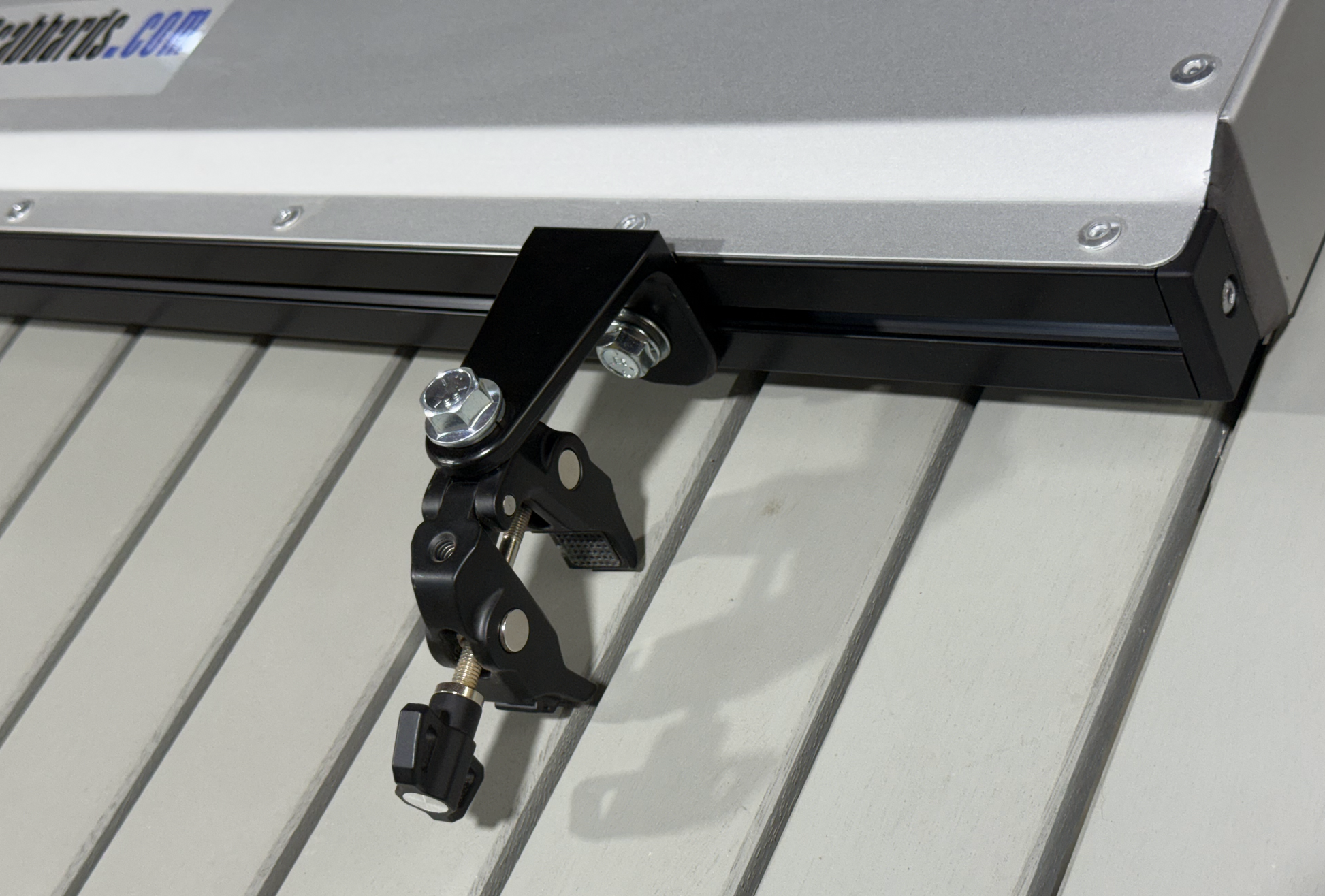

• Claw clamps: Solid aluminum with padded contact points.
• Quick-Tach Mounting: Installs and detaches in seconds, allowing you to easily travel or bike casually without the scabbard.
• Fast Access: Engineered for the sporting clays tournaments to give quick, unobstructed access to your shotgun at every station.
• Weather Ready: Compatible with standard off-the-shelf neoprene gun slips (not included) to protect your shotgun from rain and dust.

Dimensions

• Weighs 5.0 lbs.

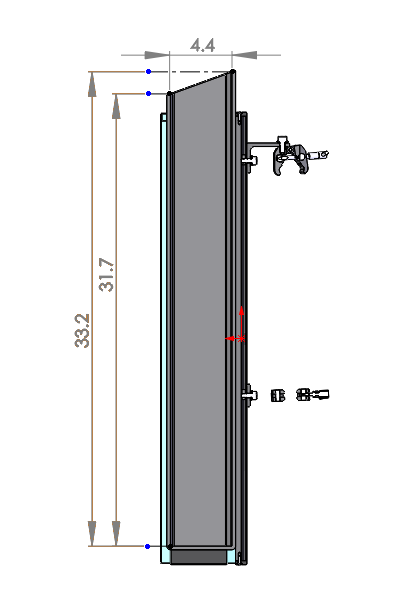

• Nominal inside dimension of padded liner is 31.7" x 4.4" x 1.8".

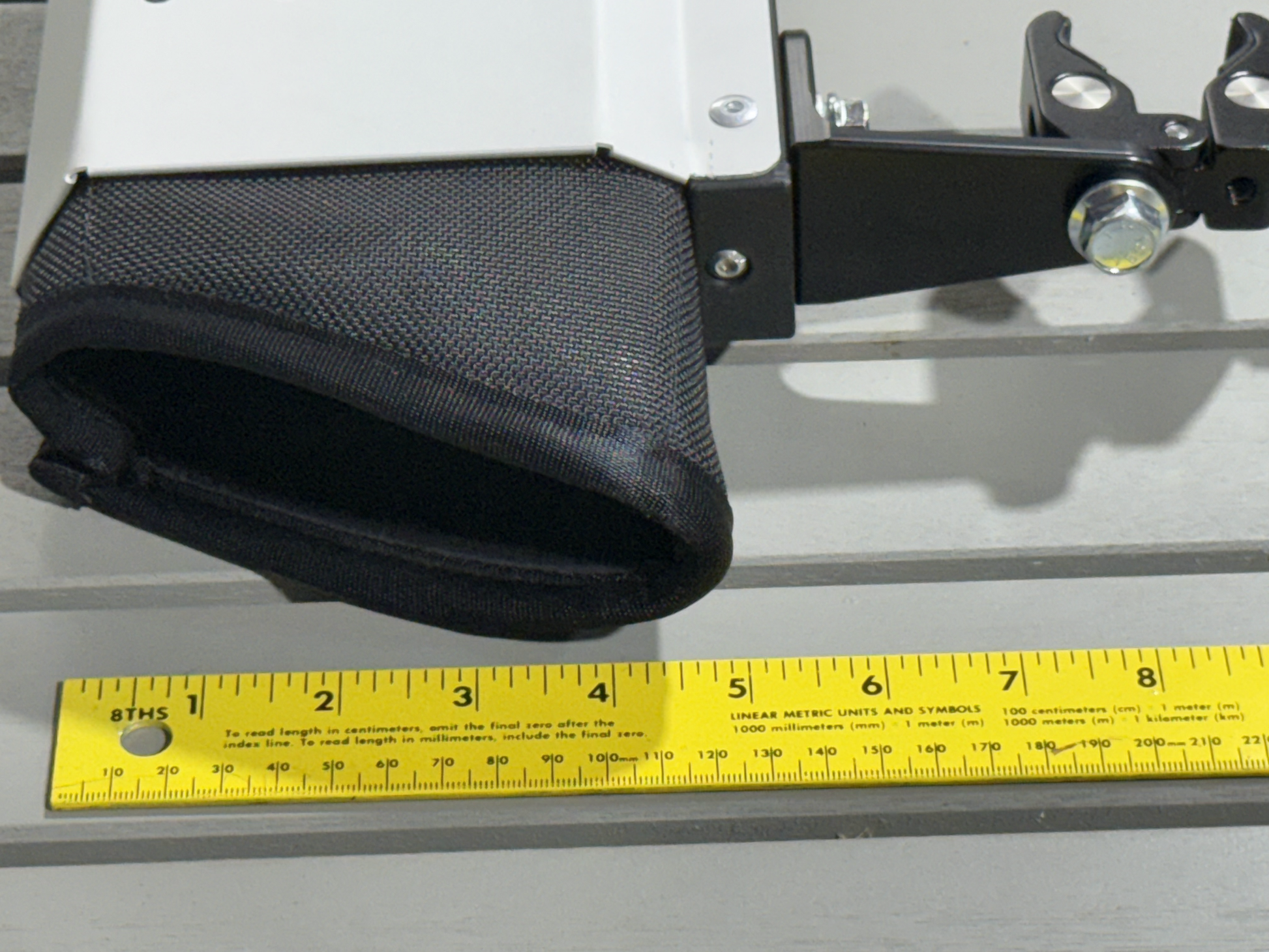

• Padding is 1/4" thick all around and includes separate 1" thick pad at bottom to protect barrel end.
• Top clamp fits 0.5"-1.7" diameter and bottom clamp fits 0.5"-2.3" diameter.  Clamps are interchangeable top to bottom as well as can be flipped to opposite side of angle mounting bracket. I recommend the clamps should be set a minimum of about 8"-10" apart from each other in most applications, however every case is different and should be assessed as so.

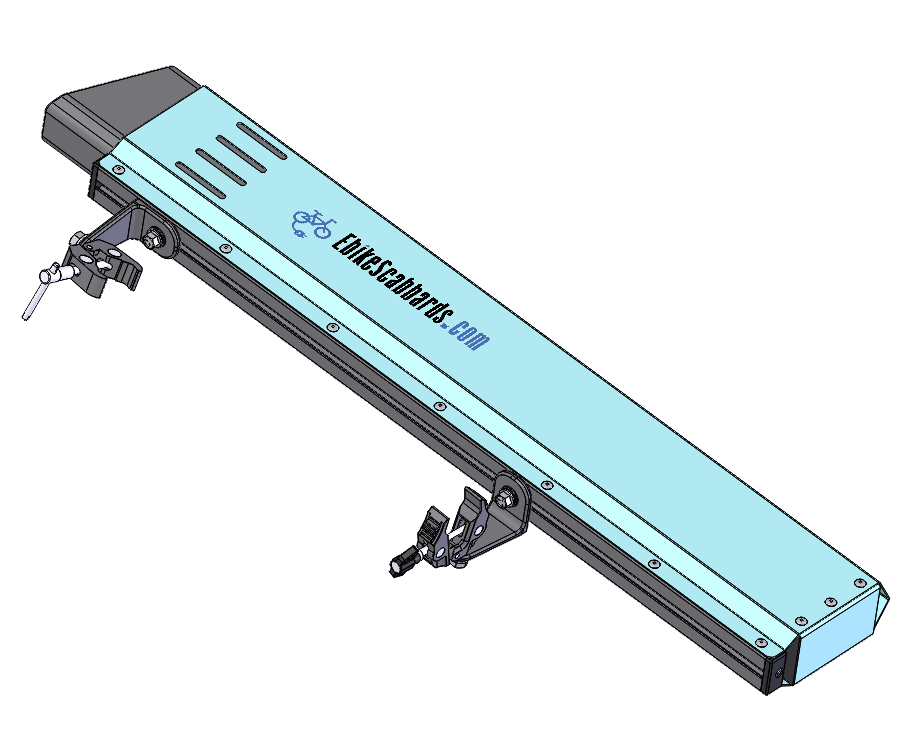

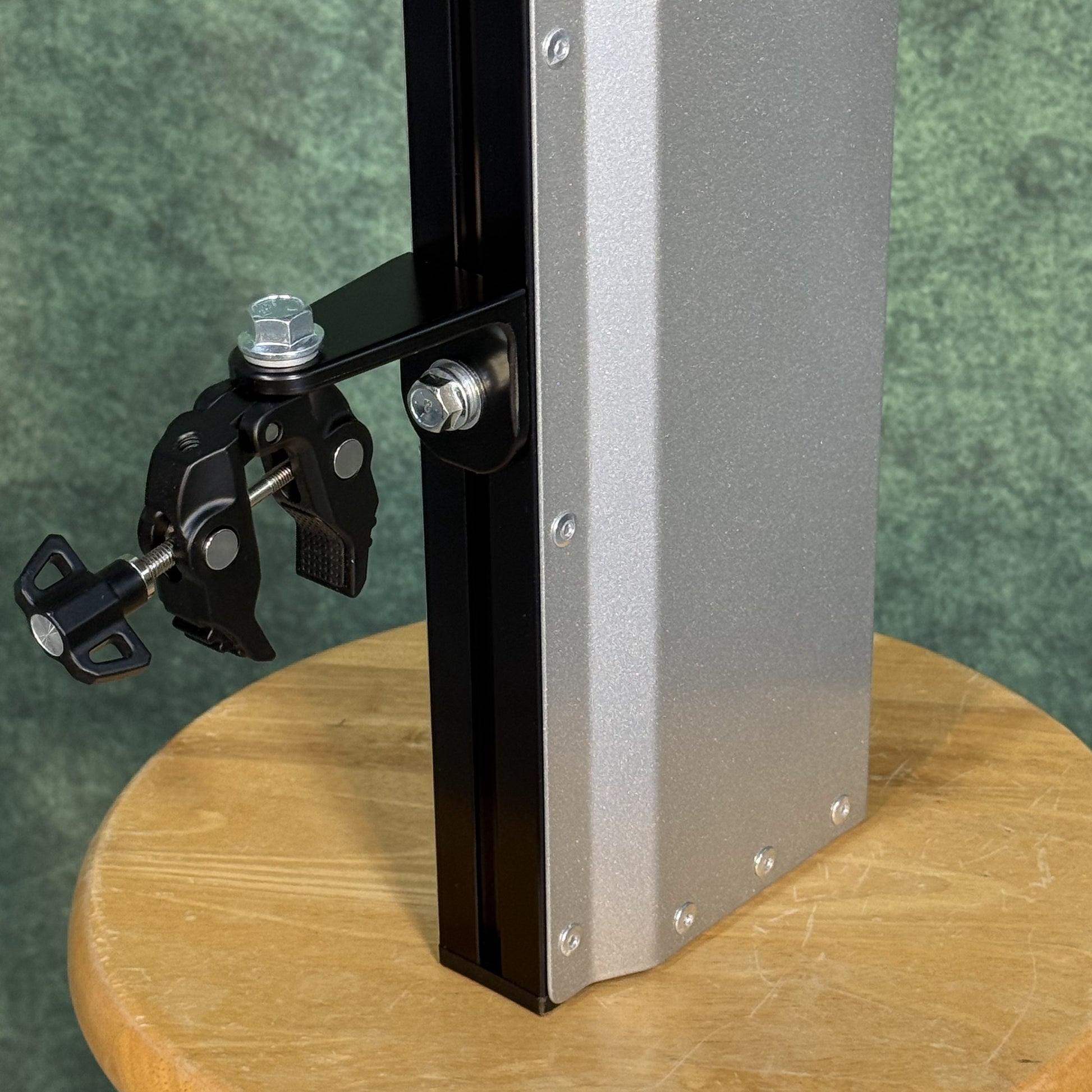

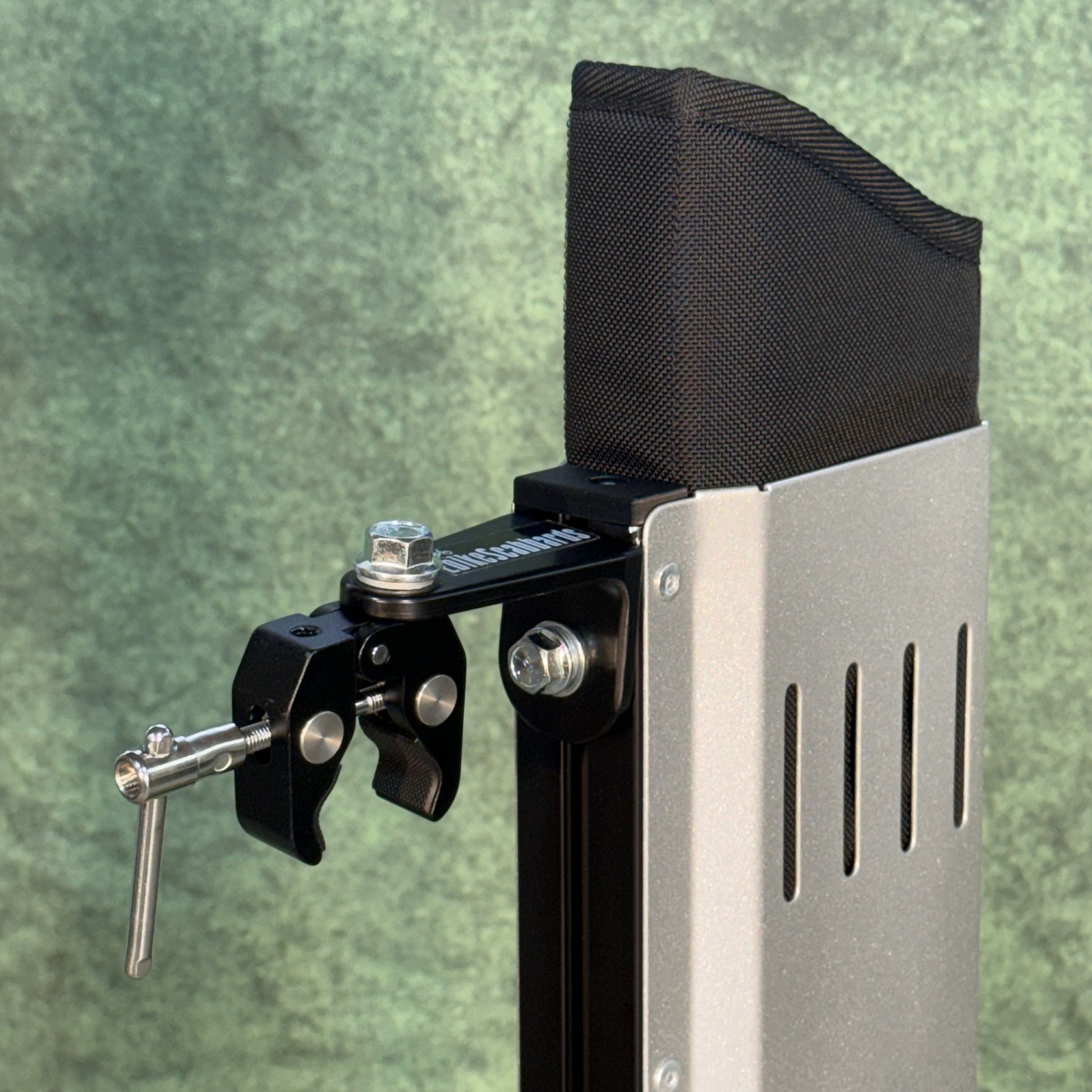

• Angle mounting brackets (and clamps) slide full length of scabbard and rotate 360 degrees for fully flexible mounting options.

Gun fits

• Over/Under shotguns:  Fits any  with 24"-34" barrel length. Will fit with ShotKam attached, but not ShotTracker.
• Semi-auto shotguns:  Fits any with barrel length 26" or greater.  With or without extended bolt handle as it will be above the liner.
• Pump shotguns:  Fits anything except short barrel models with pistol grips.
• Rifles: No scoped rifles.  Open sight models likely okay but need to look on case by case basis.
• SxS shotguns:  Check your measurements.  May fit if small gauge.

Bike Fits

• All models of e-bikes have slightly different geometry and features.  I have not seen them all, but I have seen most of them and I have yet to come across one that did not fit.  This is because although there are a lot of individual models they all fall into a few different categories.
• Clamps can be removed and angle brackets bolted directly to mounting lugs on frame if so desired by user.  In certain use cases this may be preferred if easy remove-ability does not provide value.

In the box

• Arrives FULLY ASSEMBLED, enclosed in a heavy wall cardboard box, and padded with bubble wrap.

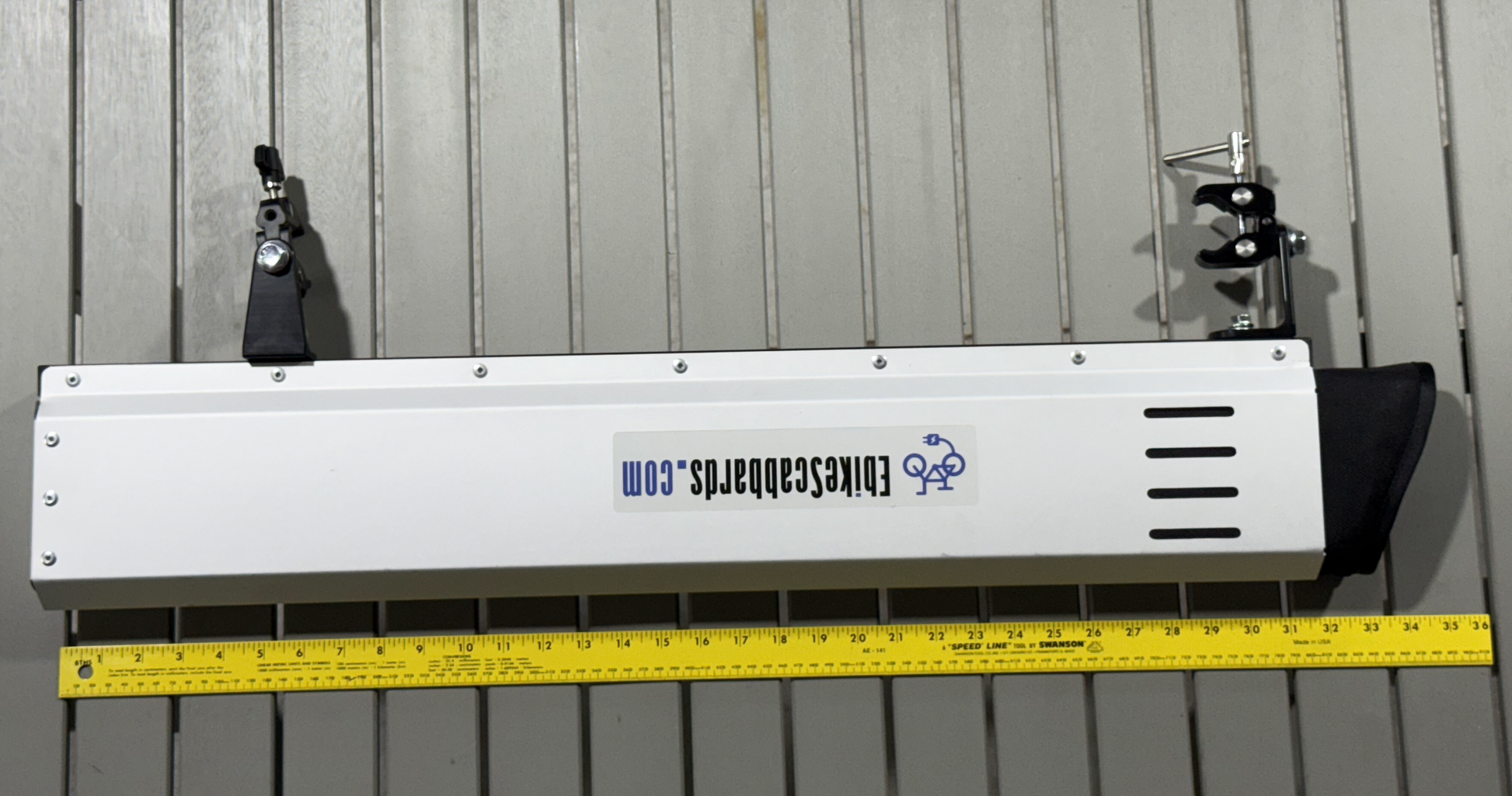

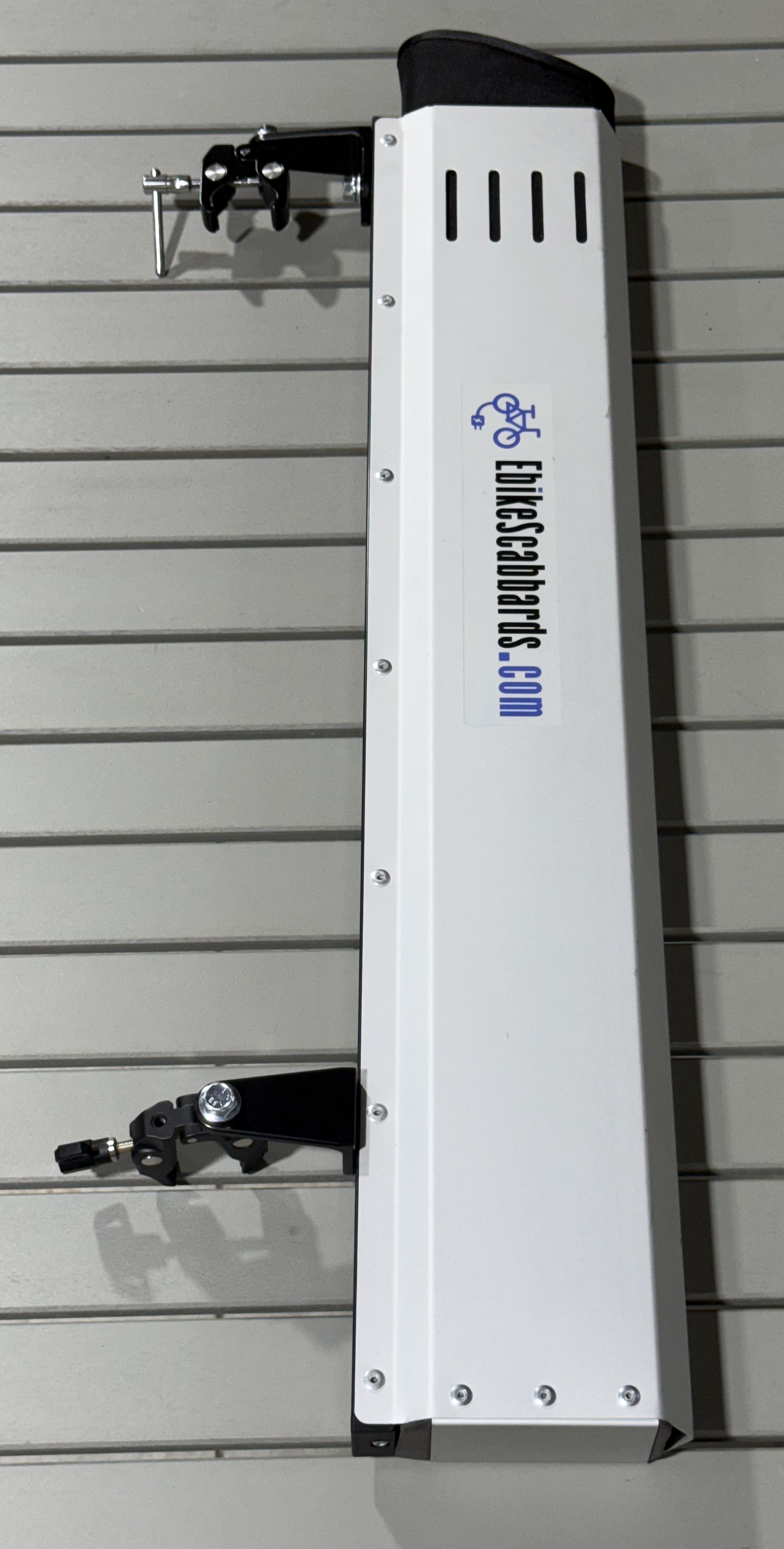

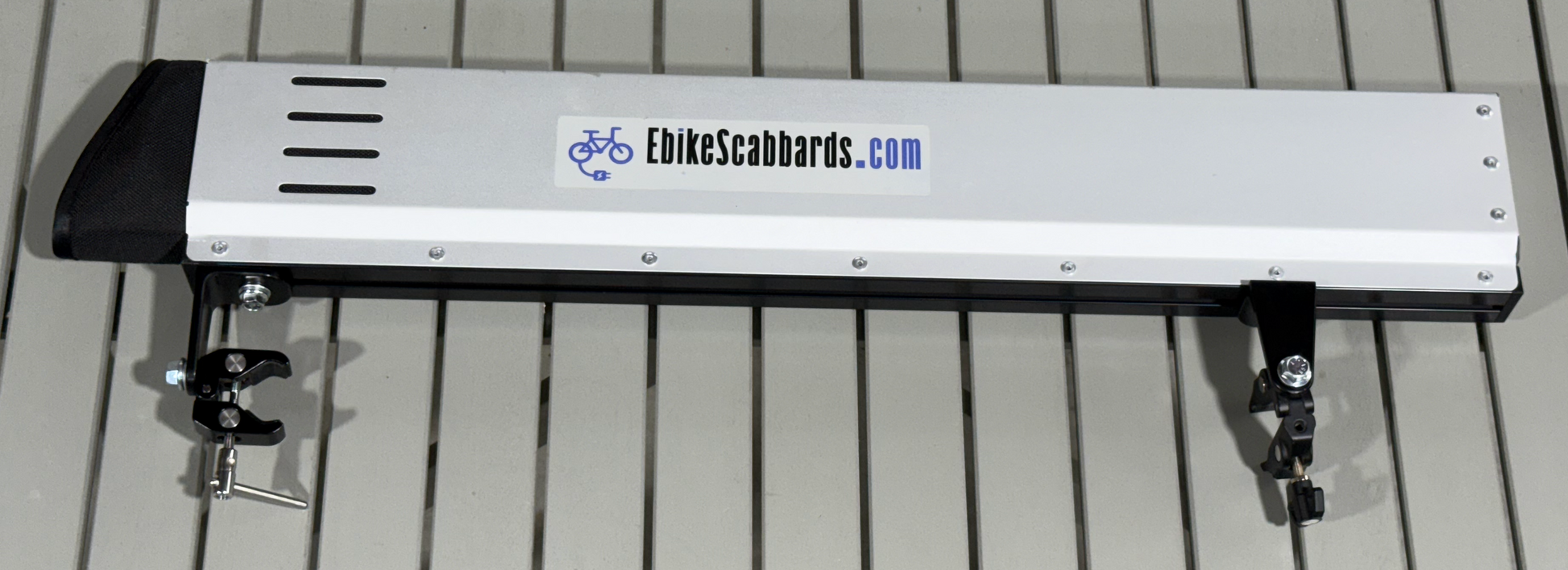

• Consists of aluminum hard sided shell, universal mounting clamps (2), and padded nylon liner. (Bike and gun not included)

Initial Installation

• Initial setup and installation is easy and takes just a few minutes.  This YouTube video link describes everything necessary.
• Once the clamps are set in position the scabbard can be removed or replaced to the bike in just a few seconds.

Shipping

• Ships within 48hrs.
• Usually around $25 for one scabbard.
• FREE shipping with orders of two or more.

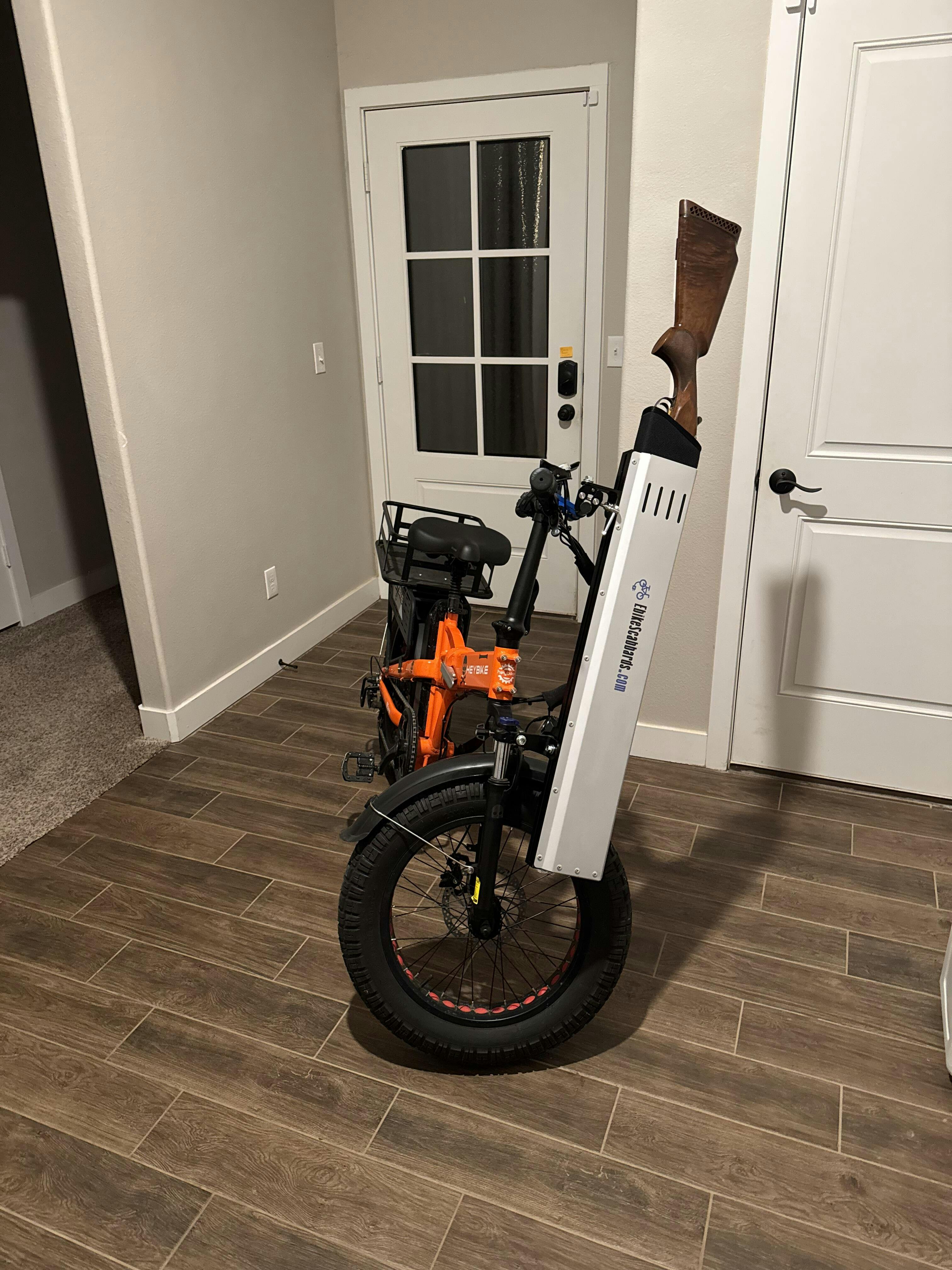

I designed the "Gen_2 Shotgun Scabbard" for e-bikes but it works just as well on a variety of other vehicles including golf carts, trikes, and mountain bikes.

Feel free to contact me with any questions and I will do my best to answer right away.
